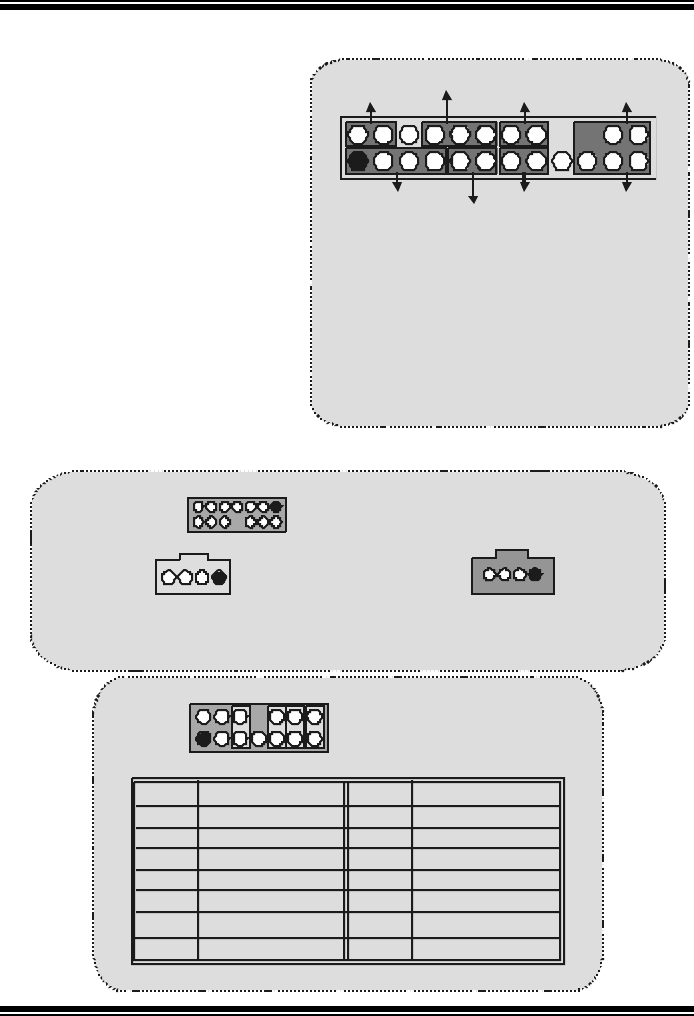

Front Panel Connector:

JPANEL1

Audio Subsystem: JAUDIO1/ JCDIN1/ JCDIN2

SPK

PWR_LED

HLED

SLP

RST

2

24

IR

123

IRON/OFF

SPK ==> Speaker Conn.

HLED ==> Hard Driver LED

RST ==> Reset Button

IR ==> Infrared Conn.

SLP ==> Sleep Button

PWR_LED ==> Power LED

ON/ OFF ==> Power-on Button

(+) (-)

(+) (-)(+)

2

JAUDIO1

1

2

13

14

Pin

1

3

5

7

9

11

13

Pin

2

4

6

8

10

12

14

Mic In

Mic Power

RT Line Out

Reserved

LFT Line Out

RT Line I n

LFT Line In

Assignment

Ground

Audio Power

RT L in e Ou t

NC

RT Line In

LFT Line In

Assignment

LFT Line Out

1

2

JAUDIO1

(Front Audio Header)

1

1

JCDIN2

(CD-ROM Audio-In Header)

JCDIN1

(CD-ROM Audio-In Header)
